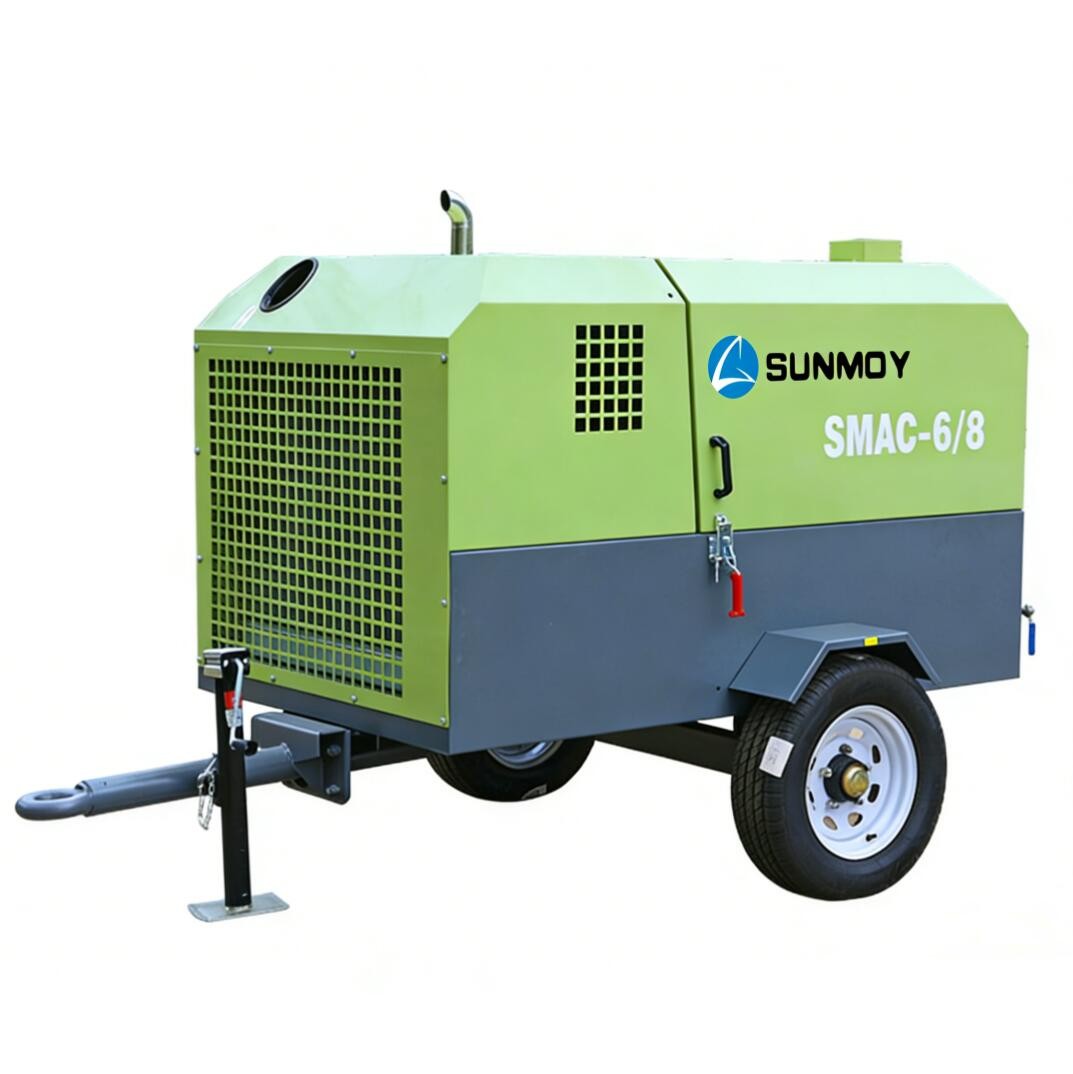

SMAC6-8 air compressor

Type of Compressor

Screw type, single-stage compression, oil-cooled   pattern

Exhaust Volume (m³/min)

6

Exhaust Pressure (bar)

8

Driving Mode

Driven by diesel engine

Oil and Gas Tank Capacity (L)

50

Lubricating Oil Quantity (L)

32

Air Filter

HANGFENG

Air End

BAOSHI

Diesel Engine

Manufacturer

XICHAI

Model

4DW91-56G2-YM20W

Rated Speed (Full Load/No Load) (rpm)

2650/2300/1450

Rated Power (KW)

41

Number of Cylinders/Bore/Stroke

4X90X100

Displacement (L)

2.54

Cooler Liquid Capacity (L)

12

Engine Oil Capacity (L)

7

Fuel Tank Capacity (L)

75

Air Filter

HANGFENG

Oil Filter

B7367

Battery

6QW-120MF

Coupling

Marine / For Marine   Use

Traveling Speed (Km/h)

0-20

Dimensions and Weight

Length (mm)

2540(1900 Excluding   traction)

Width (mm)

1460

Height (mm)

1550

Static Weight (Kg)

1000

Outlet Exhaust Valve

G1"x1&G3/4"x2

Quotation

Recommended Number of Units to be Loaded in a 40HC/HQ   High Cube Container

18

Optional Configuration 1

Fuel Primary Filter （Water Separator & Pre-filter）

Optional Configuration 2

Aftercooler
