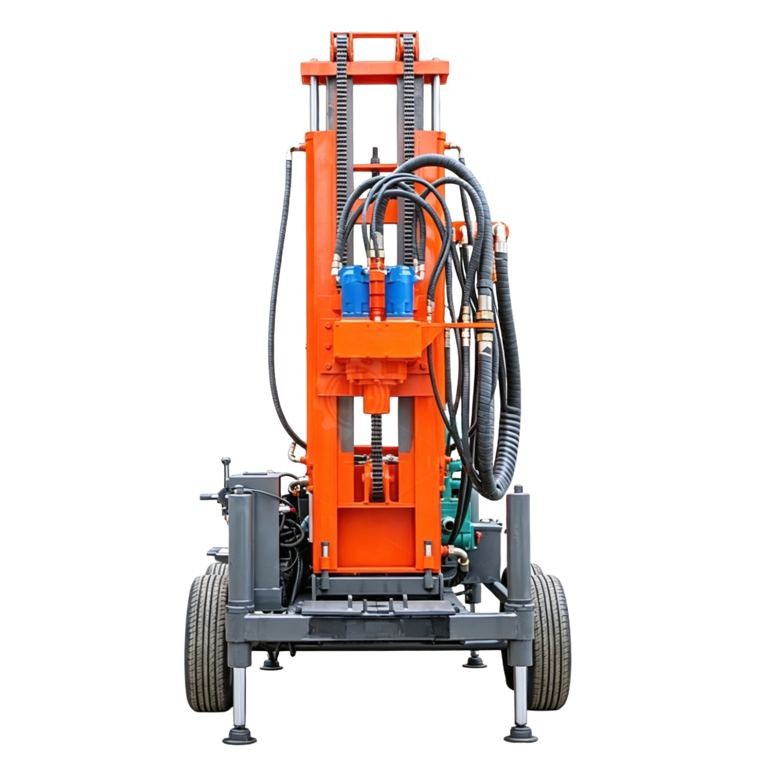

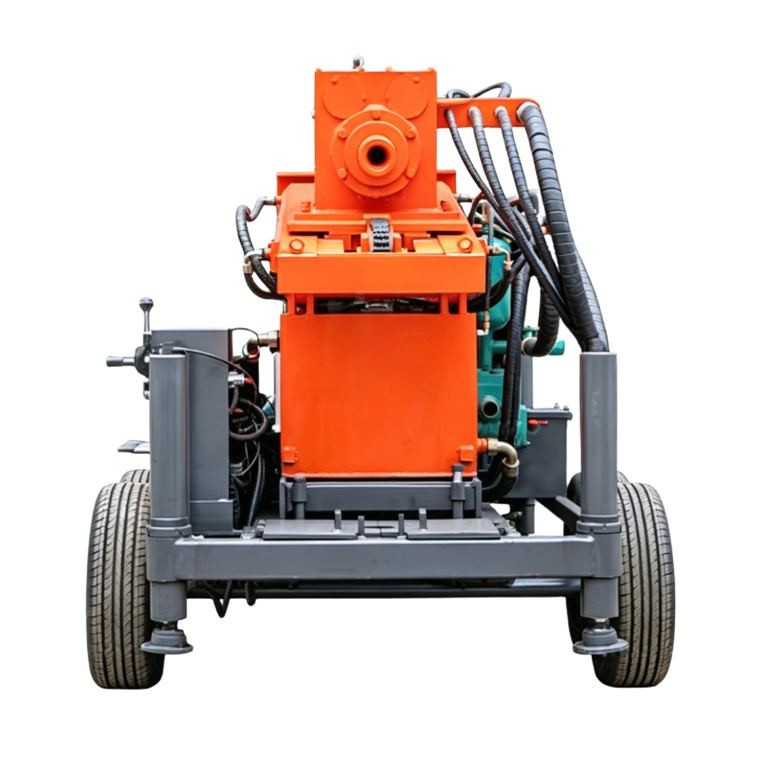

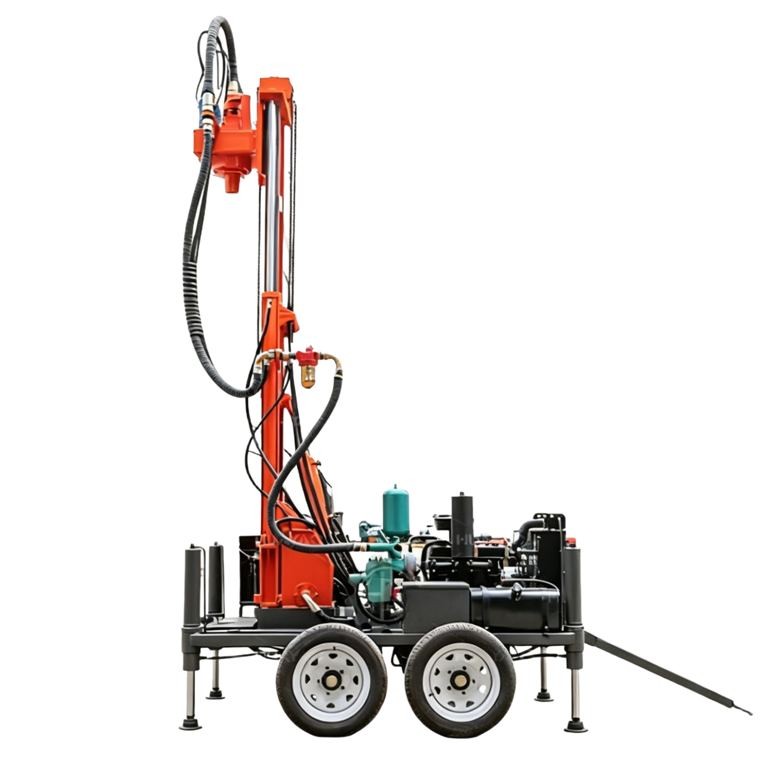

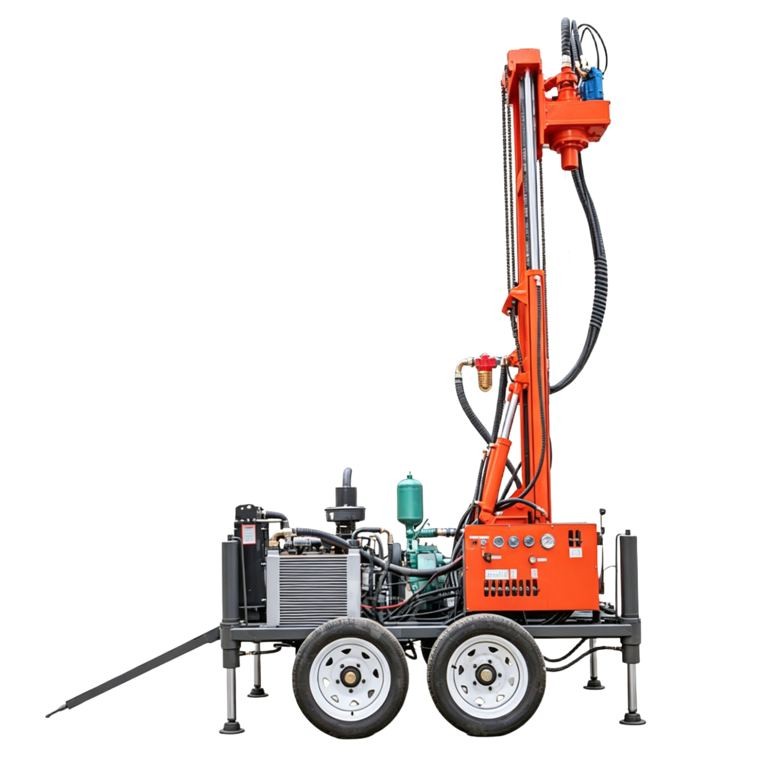

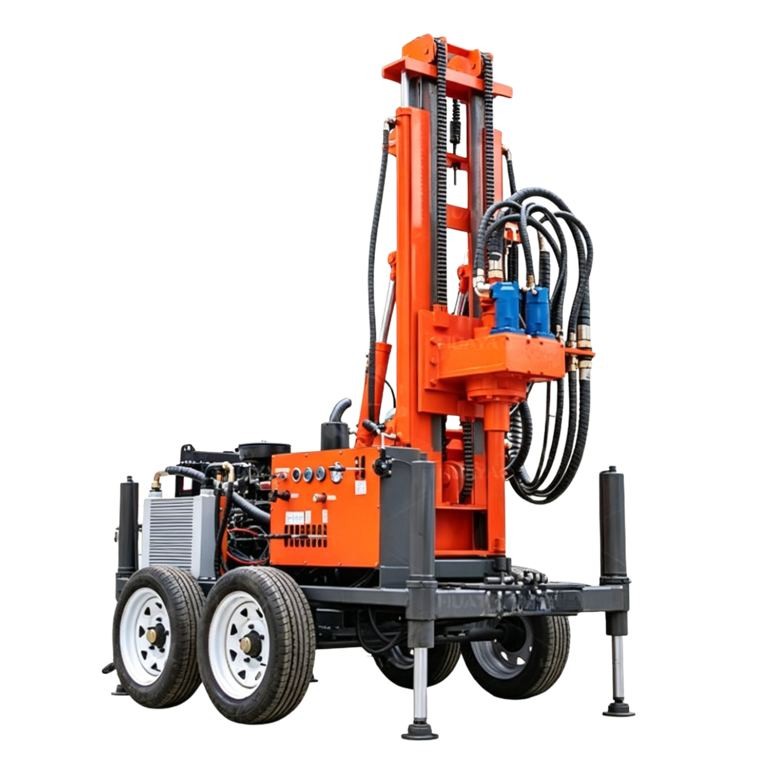

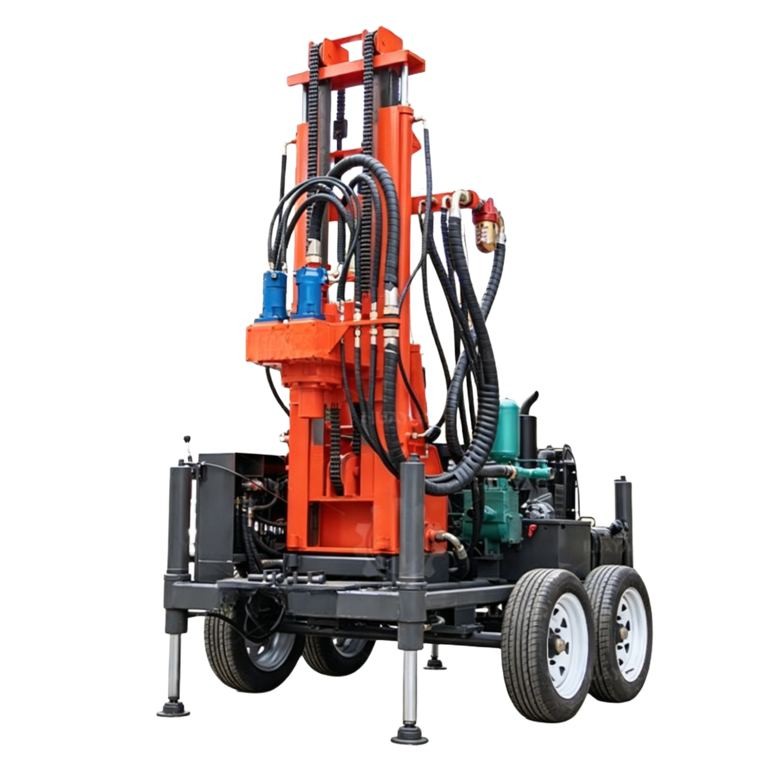

SM150D Portable Water Well Drilling Rig

Product Introduction

The SM150D is a compact and portable water well drilling rig driven by a 45 KW diesel engine. Featuring a compact overall dimension of 2300×1200×1700mm and total weight of 1800 kg, it adopts a wheeled traction chassis for simple operation and flexible site‑to‑site transportation.

Equipped with a standard BW160 mud pump for mud drilling, the rig can also connect to an external air compressor for air drilling. One machine supports two drilling technologies to adapt to various geological formations. It is widely used for domestic drinking water wells in rural areas, farm irrigation wells and small‑scale project dewatering boreholes, well‑suited for individual well drillers and small construction teams.

Product Advantages

1. Compact Structure & Easy TransportationThe wheeled towing design features light weight and small footprint. It can work in rural yards, mountainous zones and restricted‑space job sites to save time on relocation.

2. Dual Drilling ModesStandard BW160 mud pump enables mud rotary drilling. Connected with an external air compressor, it performs air percussion drilling, suitable for soil, sand‑gravel and rock formations.

3. Powerful & Reliable PerformanceThe 45 KW diesel engine delivers high torque and strong lifting capacity, with maximum drilling depth up to 200 meters, meeting most domestic and small‑capacity engineering well‑drilling requirements.

4. Simple Operation & Convenient MaintenanceWell‑arranged hydraulic system with optional high‑low speed control. It has a low learning curve and interchangeable spare parts to reduce long‑term maintenance cost.

Technical Parameters

Application Scope

‑ Rural domestic drinking water wells ‑ Irrigation wells for farmland & orchard ‑ Small‑scale construction dewatering boreholes ‑ Shallow geological exploration drilling
