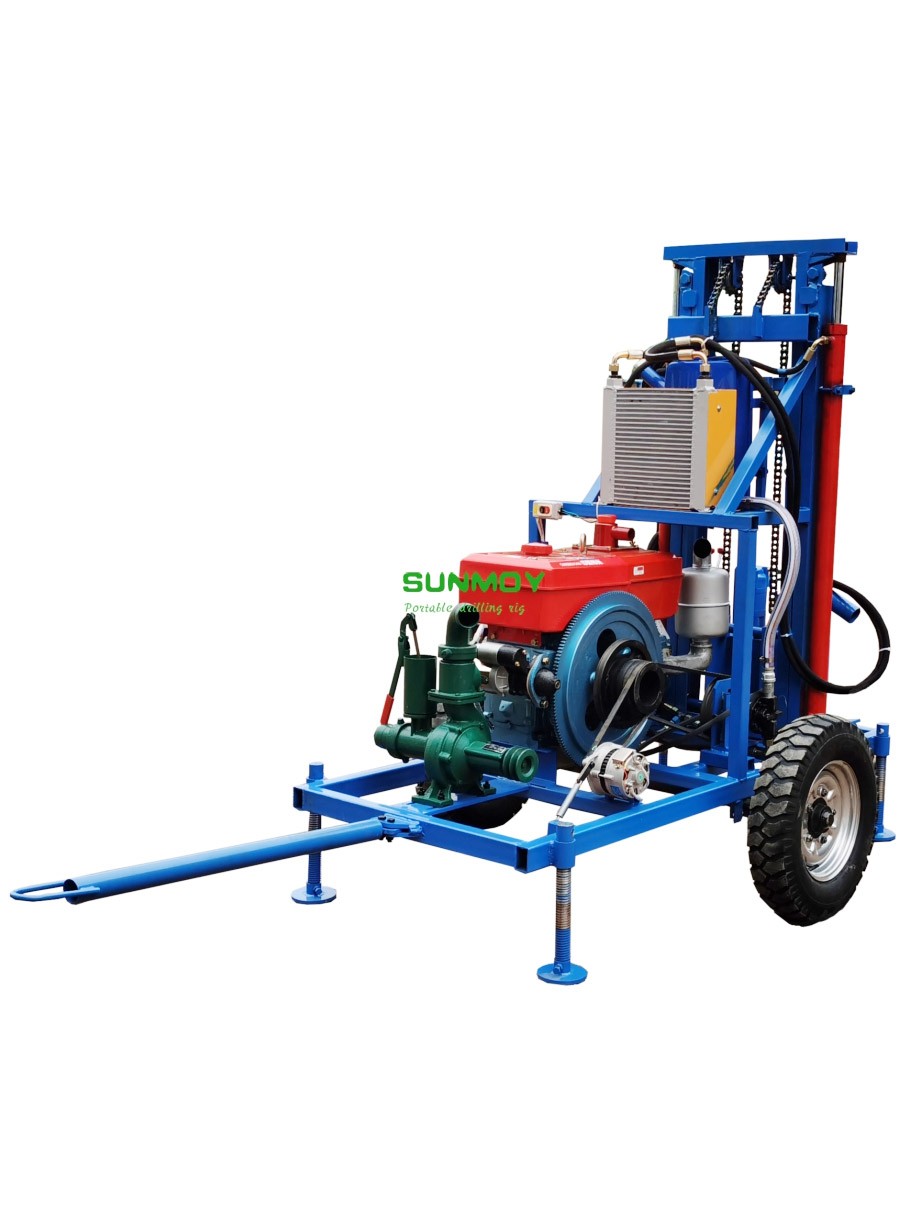

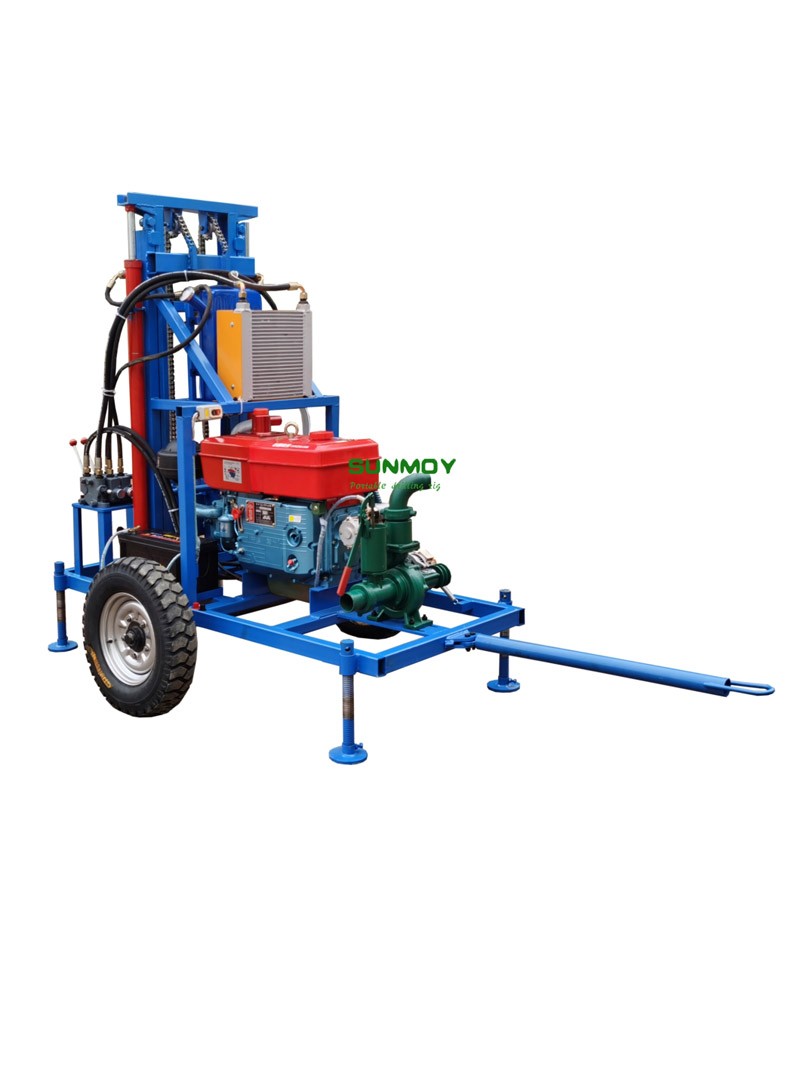

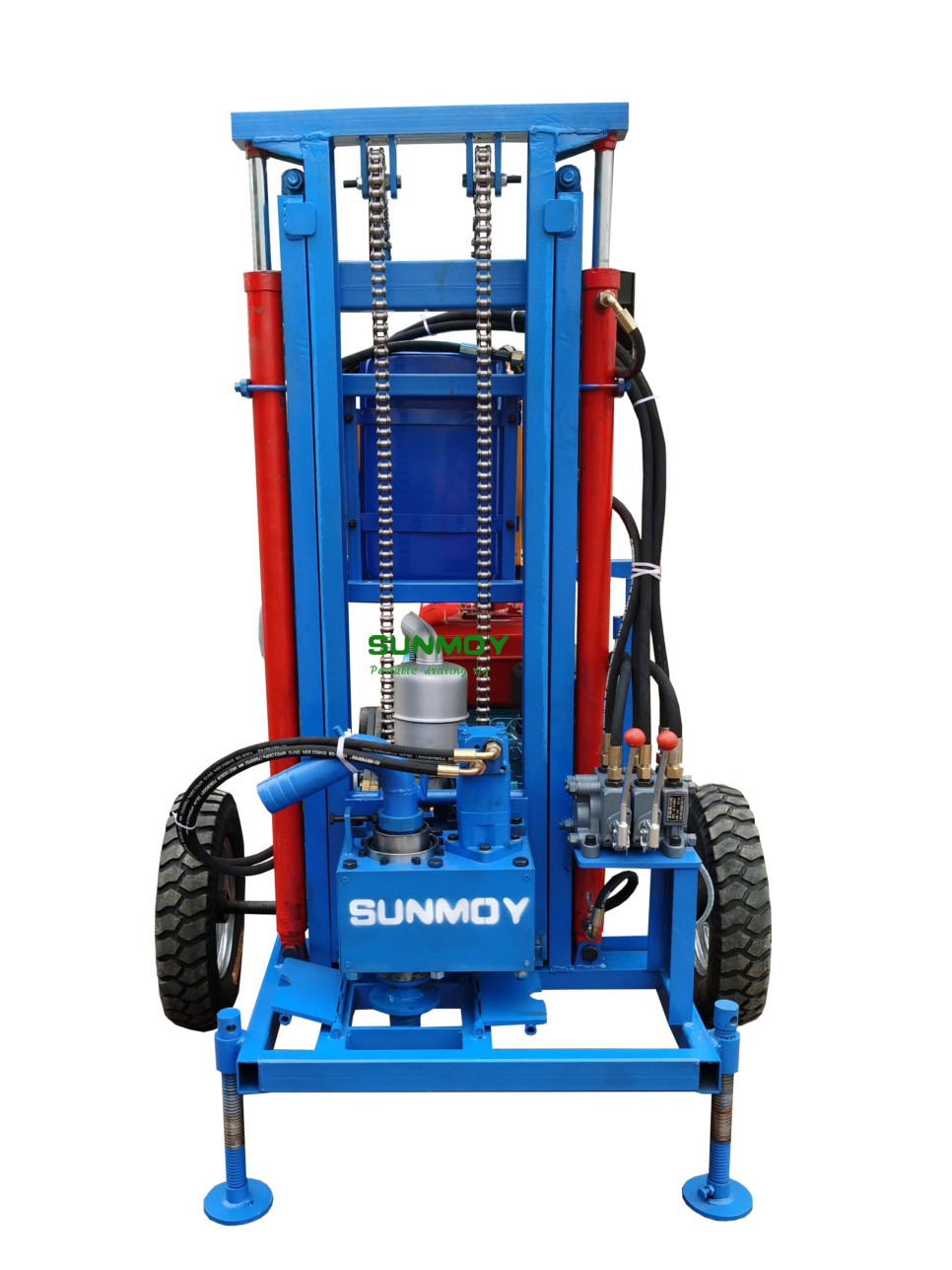

HF300D water drilling rig

This sunmoy HF300D water drilling machine is widely used for geothermal drilling, farm irrigation drilling, house yard, gardens and water well drilling, drilling diameter is 80-300mm, and max drilling depth is 150m.

Main features:

1. Light weight & folding design, convenient to carry and keep.
2. Patented product, unique design and simple drilling structure;
3. Easy to transport and can learn how to handle the machine in short time;
4. Can drill through hard stratum, unless thick rock layer;
5. One person operation, reduce the labor intensity;
6. High efficiency and work fast.
7. Assure easily operation and long life service life, free maintenance

Model:	HF300D-80	HF300D-100	HF300D-120	HF300D-150
Max Well Diameter:	300mm	300mm	300mm	300mm
Max Depth:	80m	100m	120m	150m
Working Voltage:	25HP Diesel engine
Drilling pipe length:	1600mm	1600mm	1600mm	1600mm
Drilling pipe diameter:	51mm	51mm	51mm	51mm
Driving mode:	Hydraulic motors
Rod change method	Full automatic screw thread
Drilling method:	Positive circulation and rotary type
Drilling machine overall dimension:	18008001640mm
