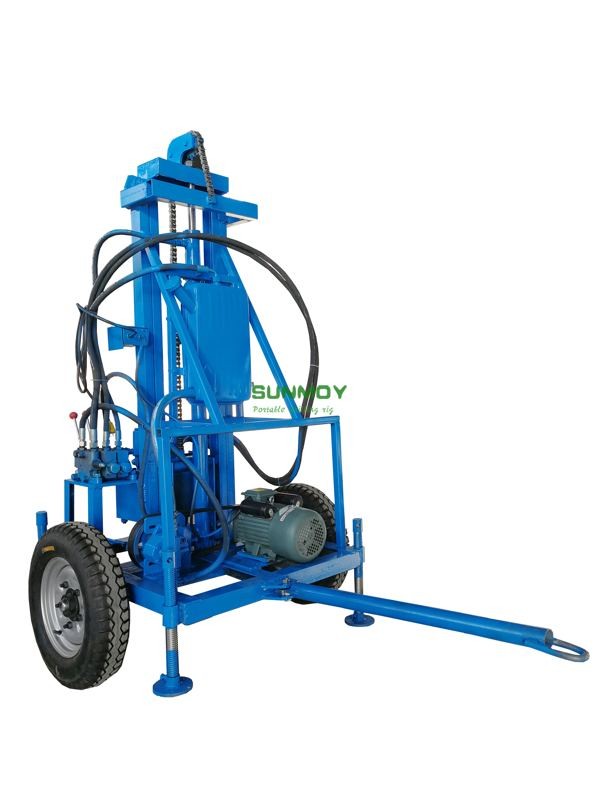

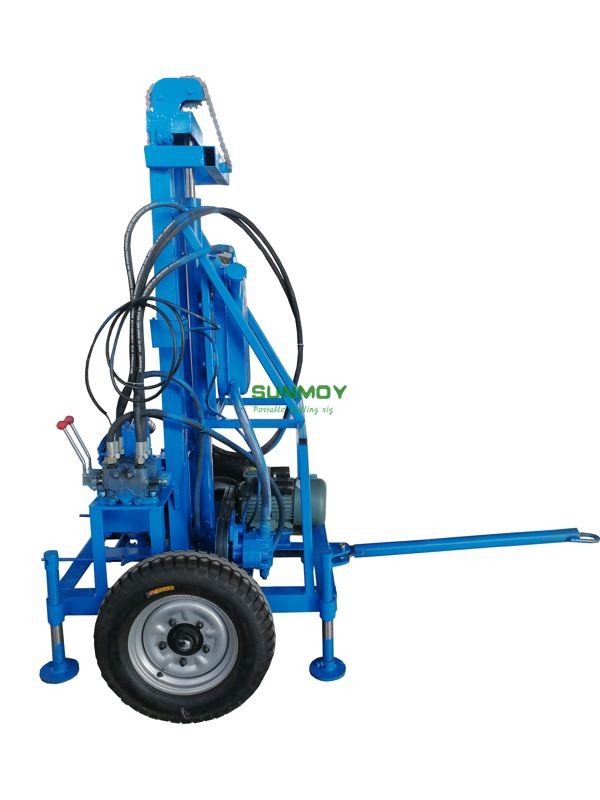

SG260D water drilling rig

This sunmoy SG260D water drilling machine is widely used for geothermal drilling, farm irrigation, house yard, gardens and water well drilling, drilling diameter is 80-300mm, and max drilling depth is 100m.


Main features:

1. Light weight & folding design, convenient to carry and keep.
2. Patented product, unique design and simple drilling structure;
3. Easy to transport and can learn how to handle the machine in short time;
4. Can drill through hard stratum, unless thick rock layer;
5. One person operation, reduce the labor intensity;
6. High efficiency and work fast.

7. Assure easily operation and long life service life, free maintenance

Model:

SG260D-40

SG260D-60

SG260D-80

SG260D-100

Max Well Diameter:

260mm

260mm

260mm

260mm

Max Depth:

40m

60m

80m

100m

Working Voltage:

220V

50/60HZ

220V

50/60HZ

220V

50/60HZ

220V

50/60HZ

Drilling pipe length:

1600mm

1600mm

1600mm

1600mm

Drilling pipe diameter:

51mm

51mm

51mm

51mm

Driving mode:

Hydraulic motors

Rod change method

Full automatic screw thread

Drilling method:

Positive circulation and   rotary type

Drilling machine overall   dimension:

1000*800*1640mm
