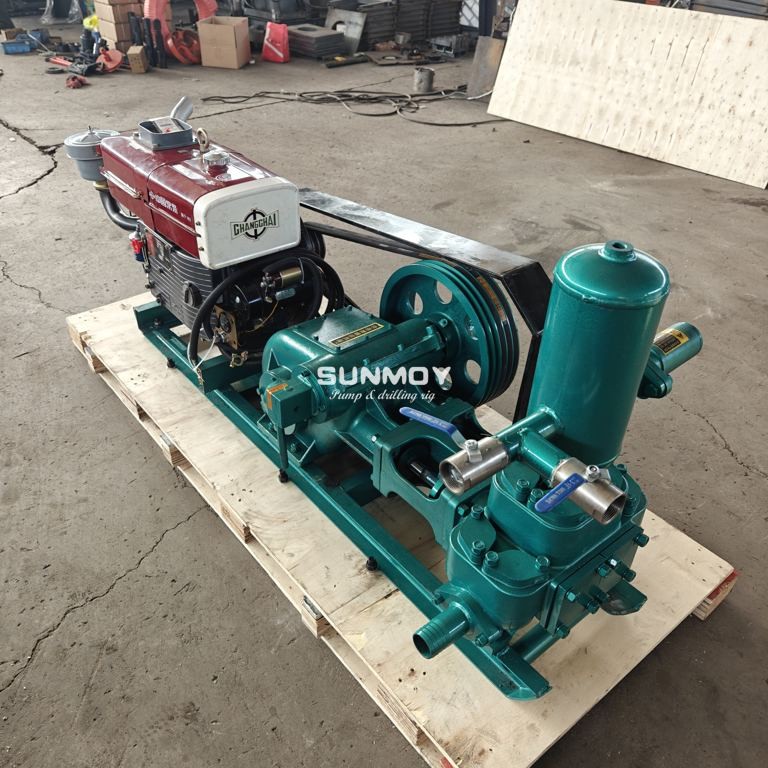

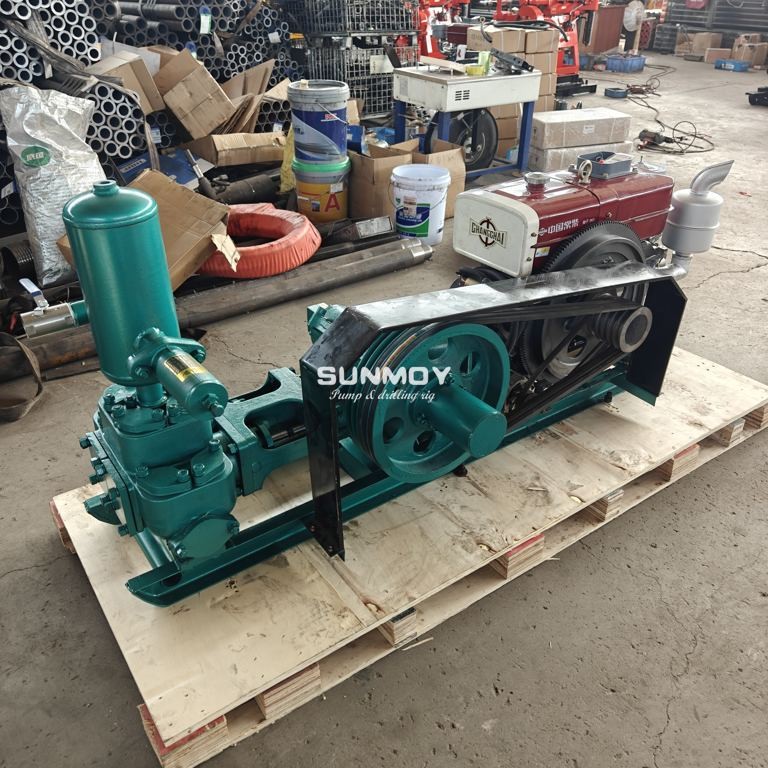

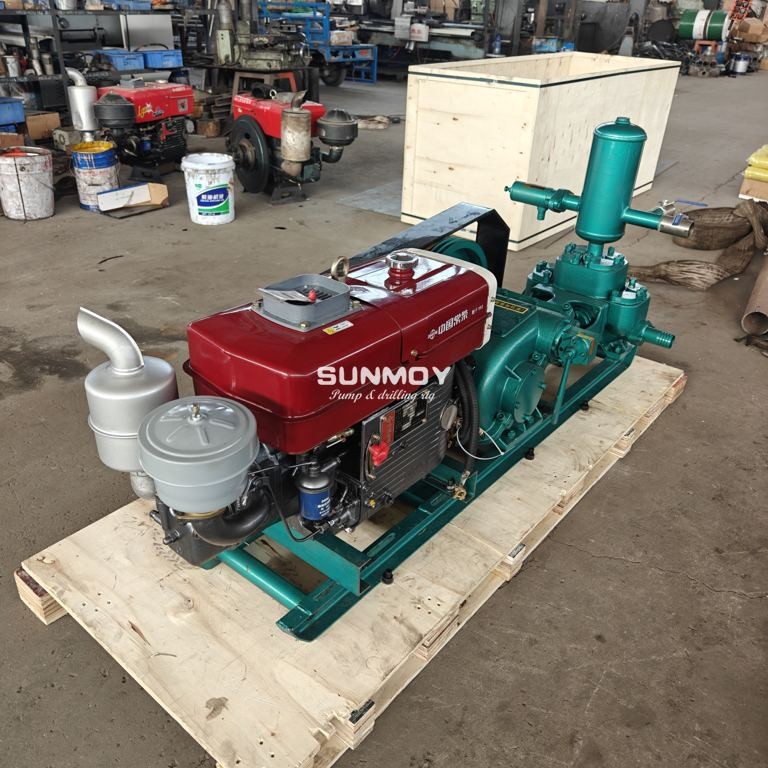

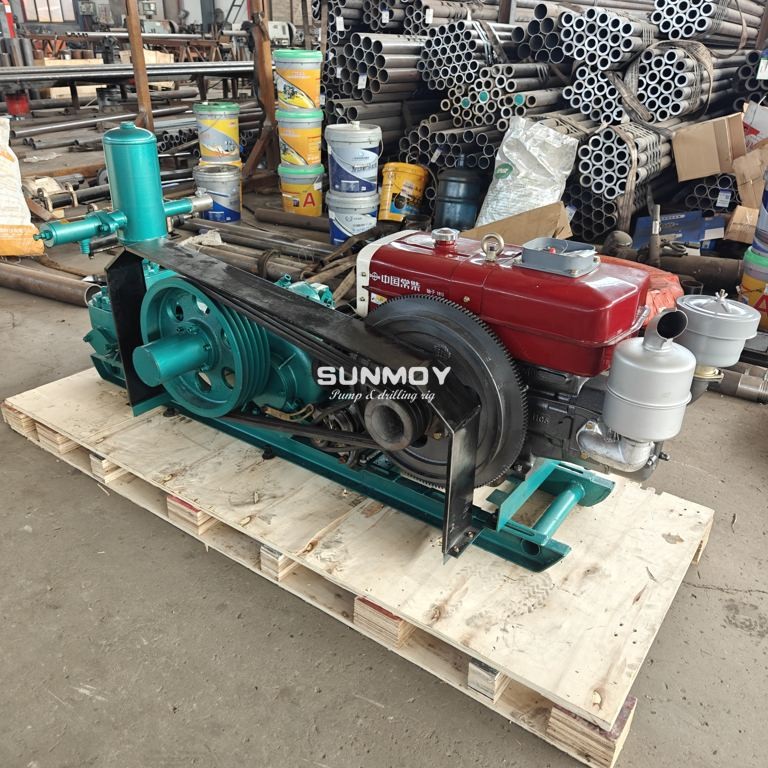

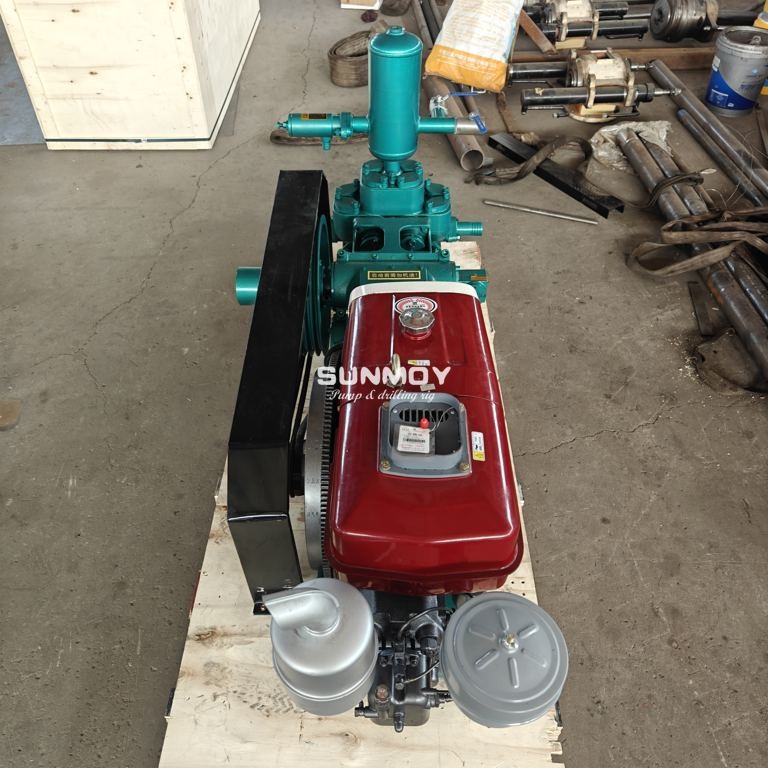

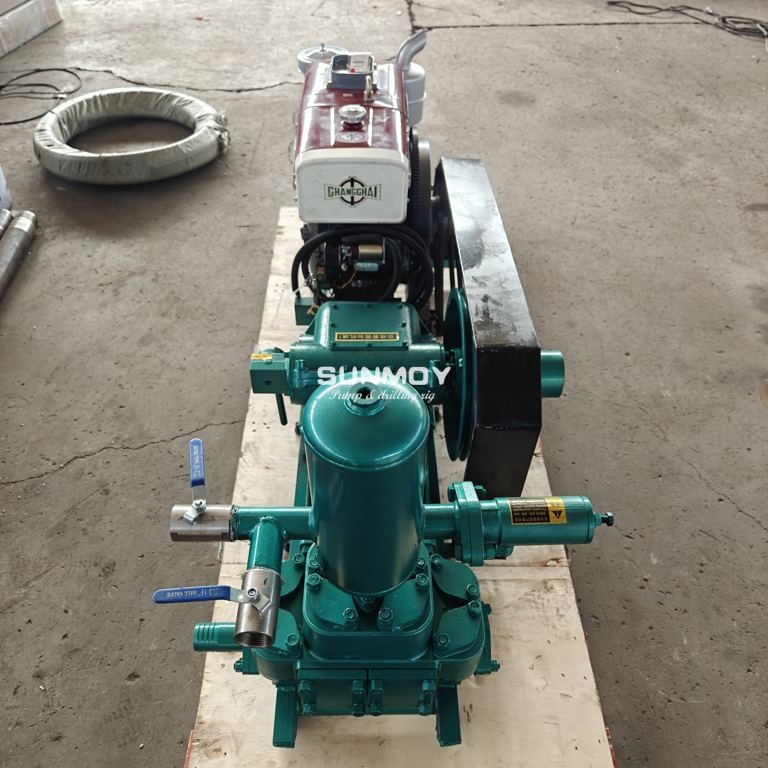

BW200 mud pump

BW200 mud pump is one single cylinder pump , mainly used for water well drilling.
The main characteristic is the high pressure, lift much, especially for mountain terraces of irrigation.It’s one the main equipment of the geological survey, the main role in the process of core drilling boreholes is to supply fluid (mud or water), making it circulate during drilling and carry rock waste back to the ground , in order to achieve and maintain the bottom hole Clean and lubricate drill bits and drilling tools with cooling

CHARACTERISTICS:

The BW200 mud pump is a type of reciprocating piston pump that is widely used in the drilling industry for circulating drilling fluids or mud. Some of its main characteristics are:

Compact and Portable: The BW200 mud pump is a small and lightweight pump that is easy to transport and set up on drilling sites.

High Efficiency: With a maximum flow rate of 200 liters per minute and a maximum pressure of 10 MPa, this pump is capable of delivering the necessary drilling fluids or mud at a high rate and pressure.

Durable and Reliable: The pump is made of high-quality materials and is designed to withstand the harsh and demanding conditions of drilling operations.

Simple Operation and Maintenance: The BW200 mud pump is easy to operate and maintain, with a simple design and few moving parts.

Versatile: This pump can be used for a variety of drilling operations, including water well drilling, geological drilling, and exploration drilling.

Overall, the BW200 mud pump is a reliable and efficient pump that is essential for successful drilling operations.

Technical Specification of BW200 Mud Pump

Type: BW200	Horizontal two cylinder reciprocating single acting piston pump
Cylinder Liner Dia (mm)	85
Piston Stroke (mm)	145
pump speed	80
Flow(L/min)	200
Pressure(MPa)	4
Outlet pipe diameter(mm)	51
Inlet pipe diameter(mm)	76
Power	15
Shape Size(mm)	1050630820
Weight(kg)	300
