Product Description

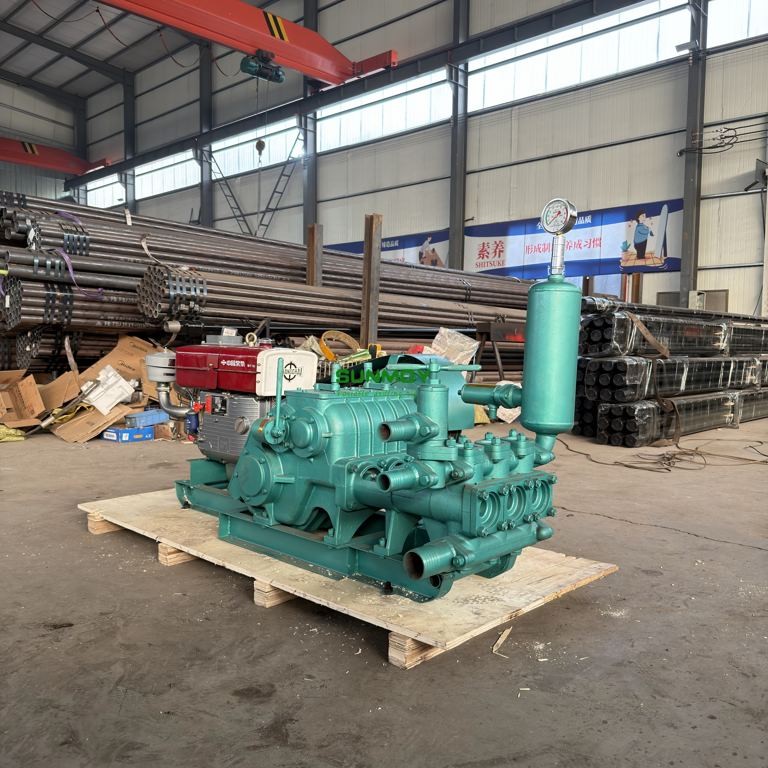

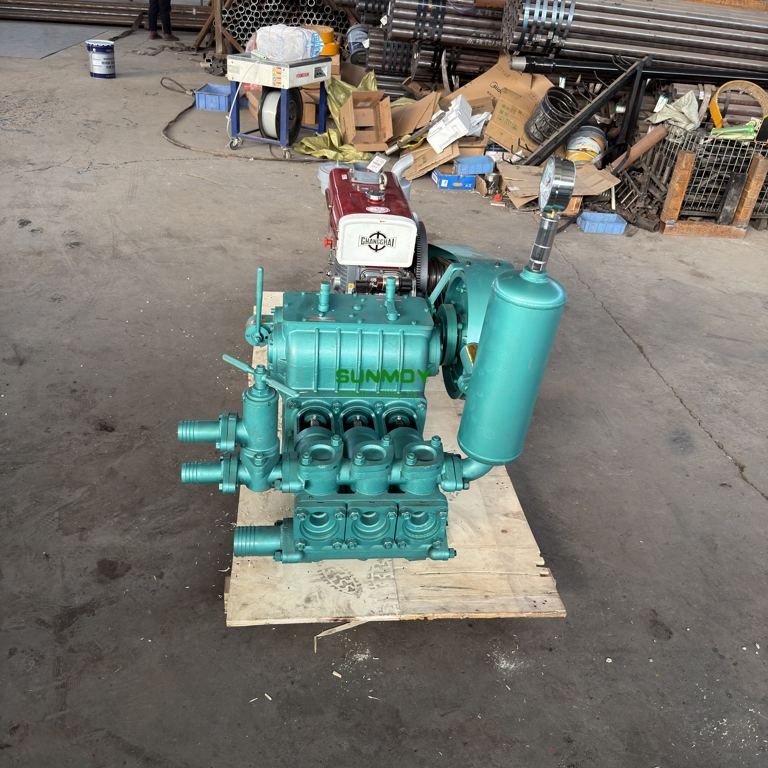

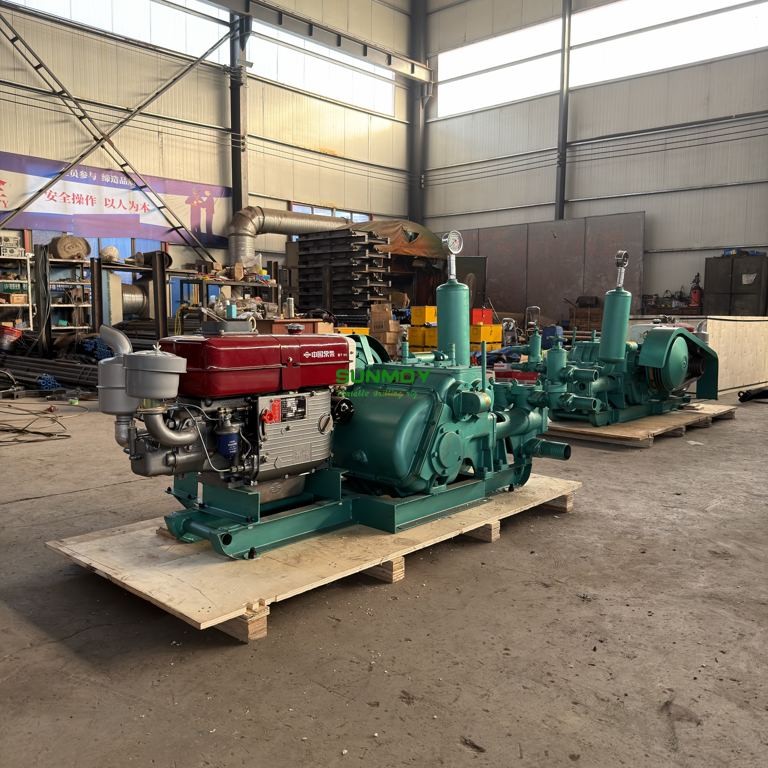

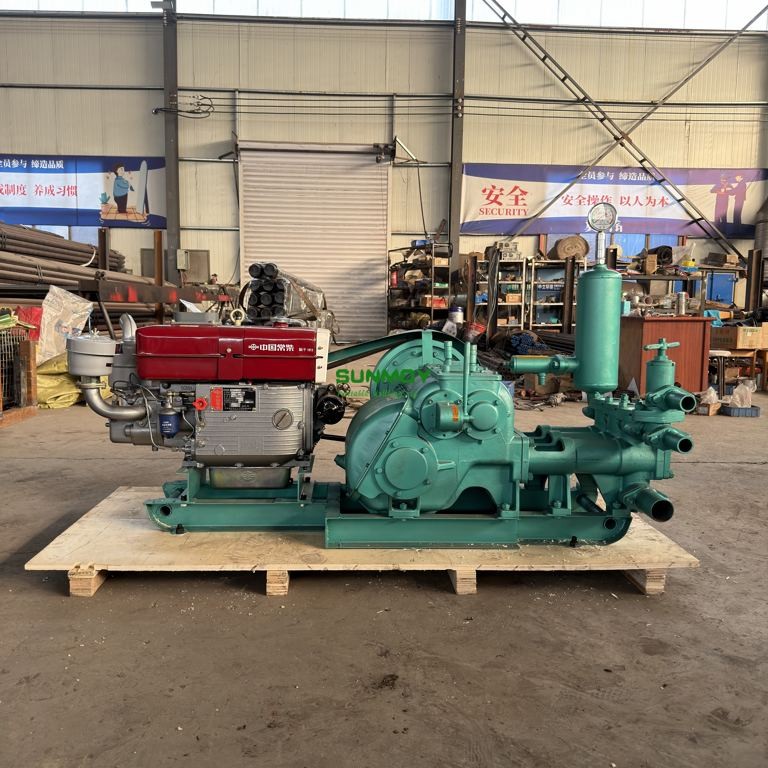

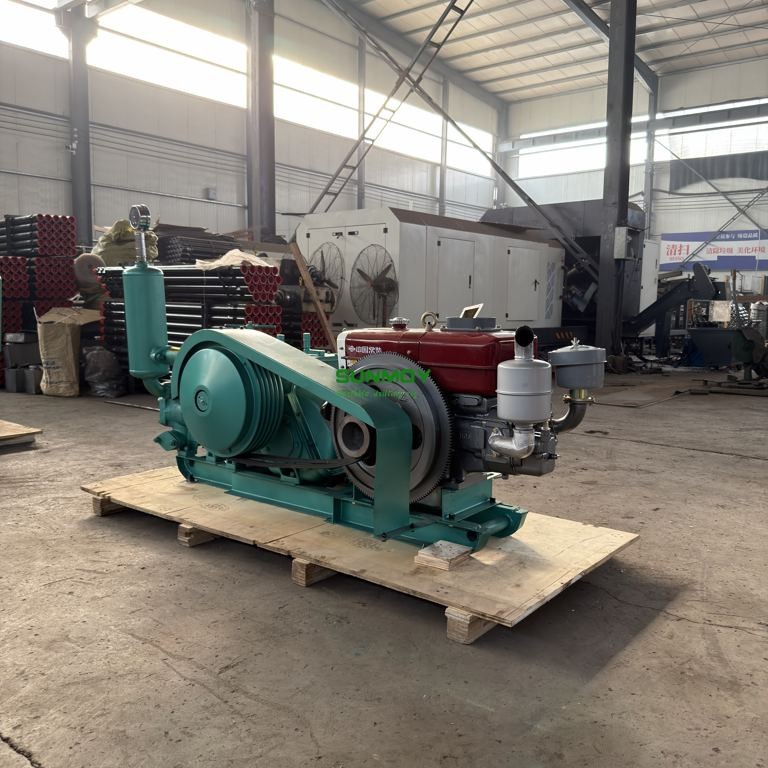

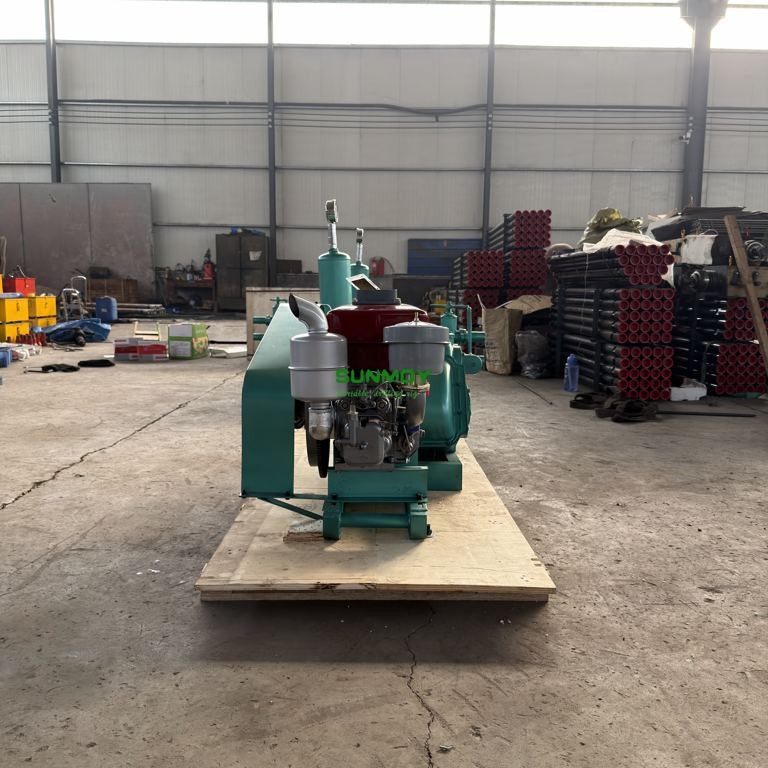

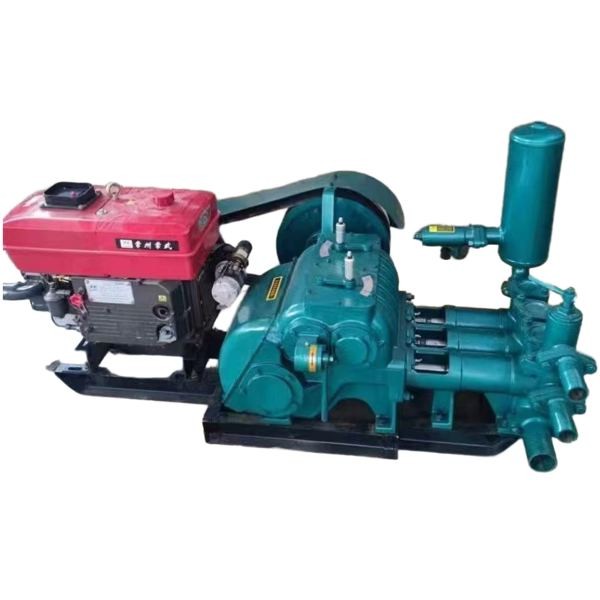

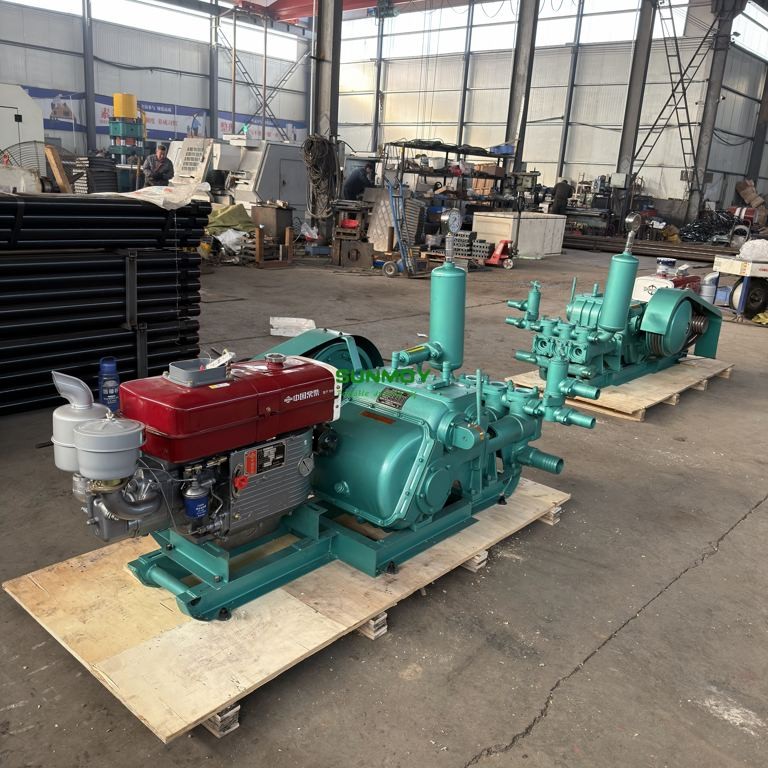

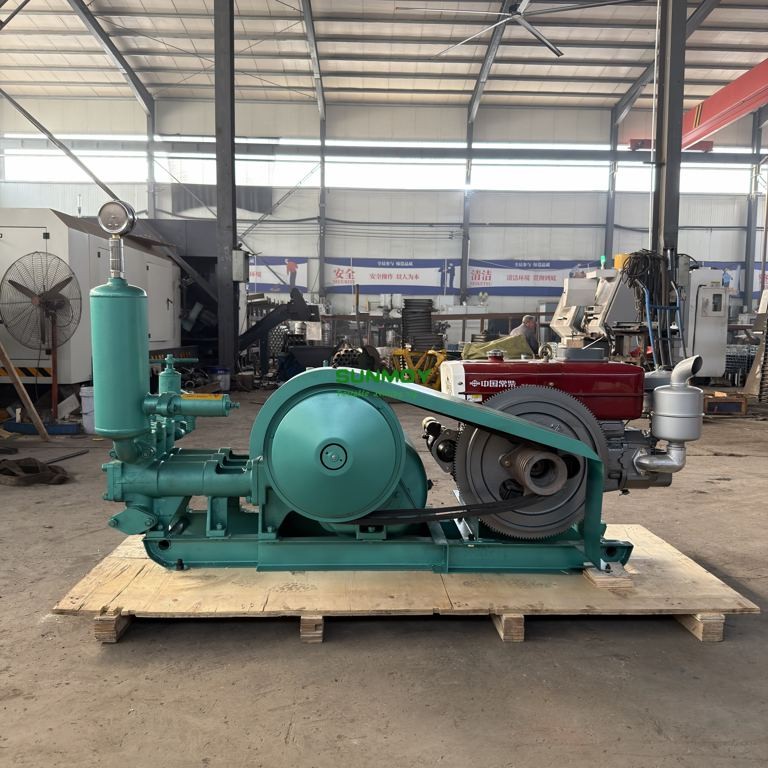

The BW250 mud pump is a high-efficiency, robust, and durable double-acting pump widely used in drilling, mining, and civil engineering. Its main features include:
Power System: Diesel engine driven, providing powerful performance suitable for continuous operation.
Flow Rate and Pressure: Flexible adjustment of flow rate and pressure to meet diverse operating conditions.
Materials and Design: Utilizes high-strength, wear-resistant materials to ensure stable operation even in harsh environments.
Maintenance: Designed for ease of maintenance, reducing upkeep time and costs.
Ease of Operation: Equipped with an intuitive control system for easy operation and improved work efficiency.

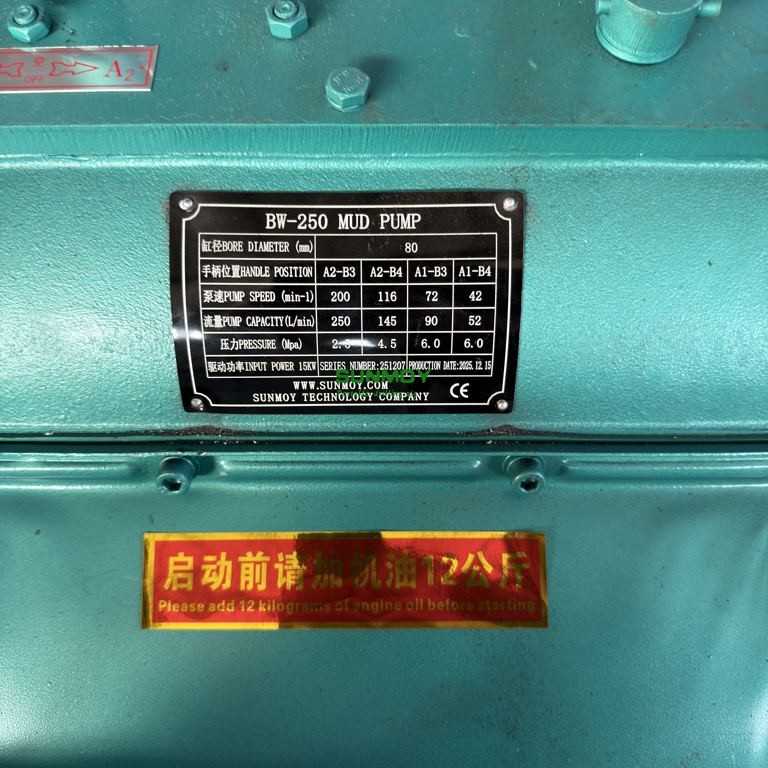

BW250 Technical Parameter | |
Pump type | horizontal triplex single-acting piston pump |
Number of cylinders | 3 |
Cylinder diameter | 80mm |
Stroke | 100mm |
Displacement | 250/145/90/52L/min |
Working pressure | 2.5/4.5/6.0/6.0Mpa |
Transmission shaft speed | 500r/min |
Diameter of V-belt pulley | 410mm |
V-belt type and number of slots | B type * 5 slots |
Transmission power | 15KW |
Suction pipe diameter | 76mm |
Drain pipe diameter | 51mm |
Dimensions (L*W*H) | 1100*995*650mm |
Weight (including power) | 500kg |
