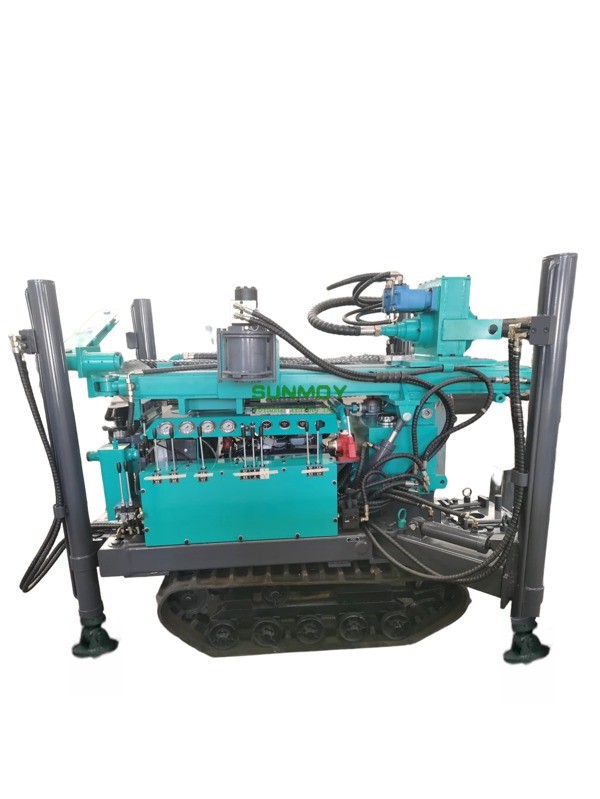

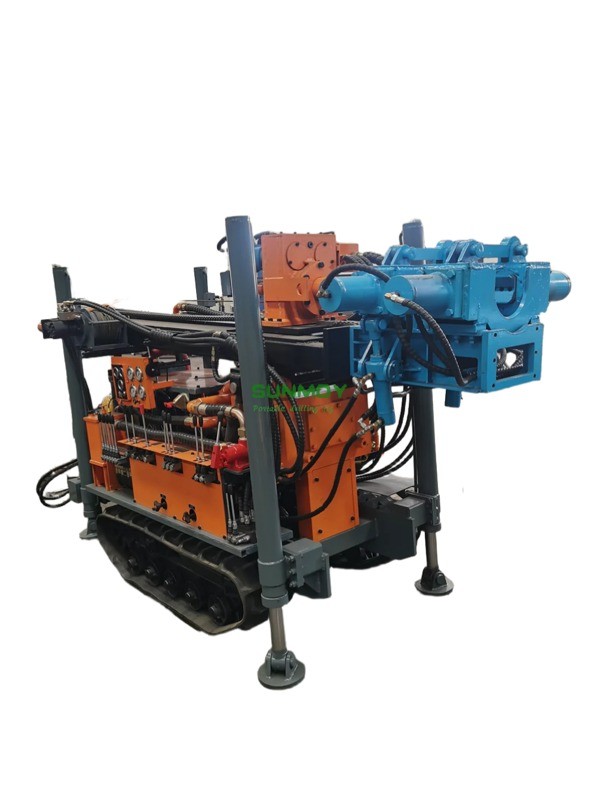

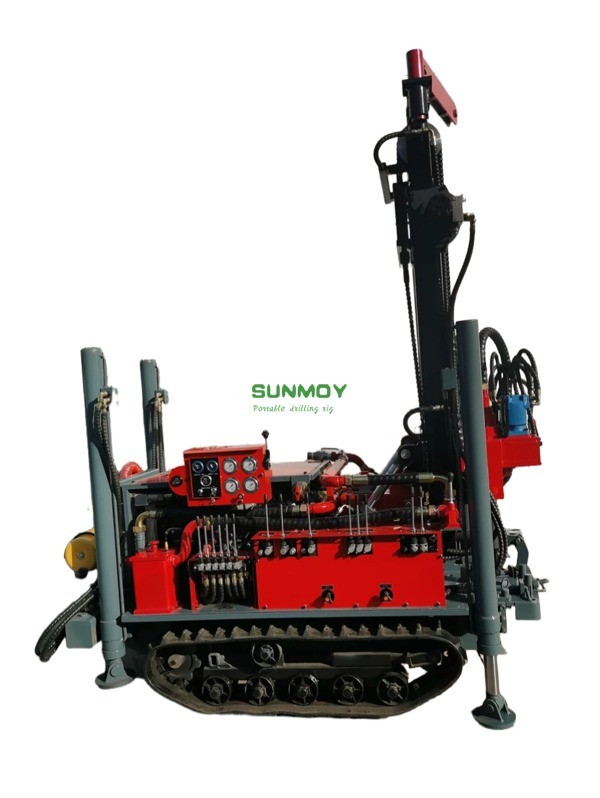

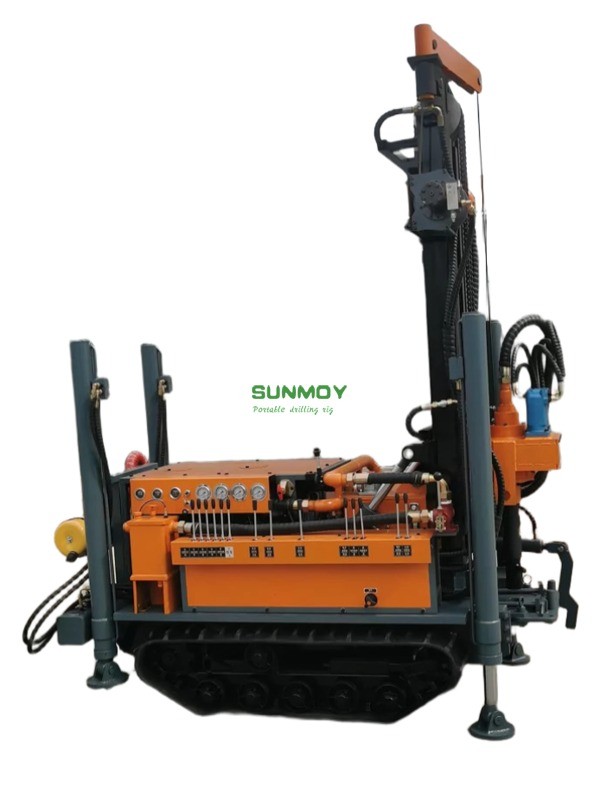

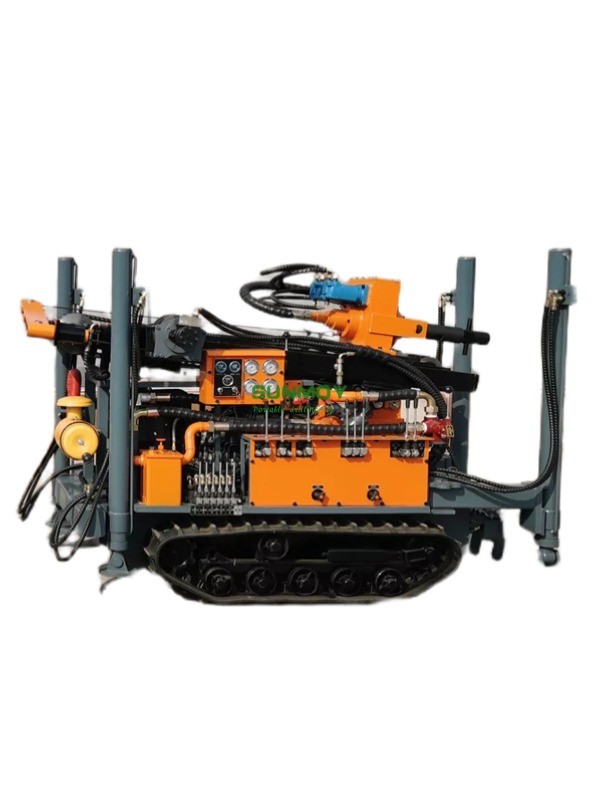

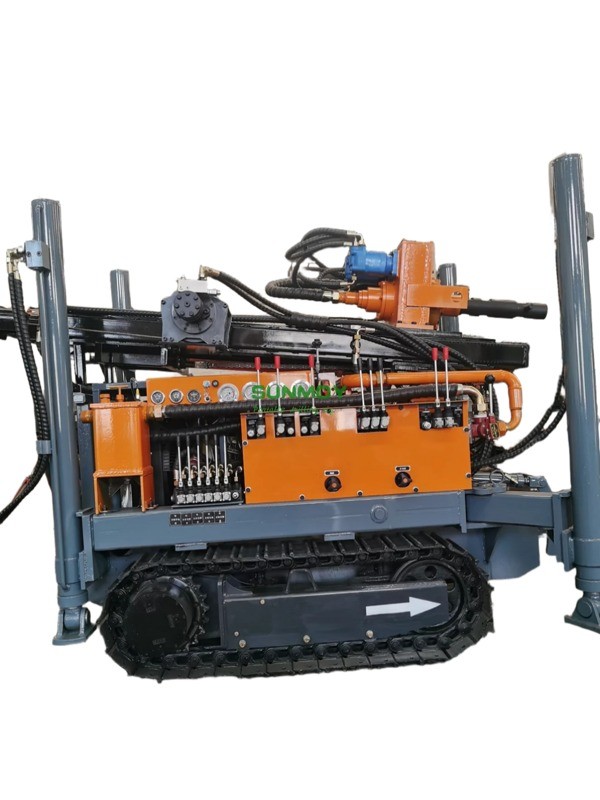

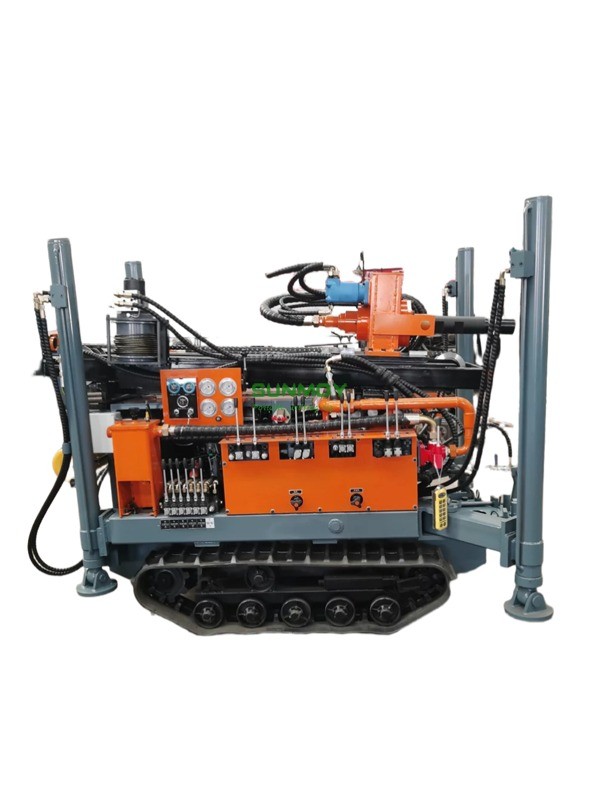

SM200D Mini DTH drilling rig

SUNMOY SM200D is both Pneumatic DTH drilling and mud pump rotary drilling, it can drill hard rock stratum with fast drilling speed. This water drilling machine is four set high hydraulic legs, very convenient to transport.
This machine adopts newest and advanced hydraulic technology, low consumption, large rotary torque, convenient operating, this water drilling rig is widely used for deep well drilling, farm irrigation well drilling, geothermal well drilling, borehole drilling, mini pile drilling etc projects

Advantage and features

1, Small size, light weight, Compact structure, and flexible operation.

2, It is DTH pneumatic water drilling rig, two hydraulic motors rotary head, top driving.

3, Big powerful and ability, it use 100hp diesel engine.

4, It is rubber crawler mounted type, easy to move

5, Full hydraulic legs, very convenient to transport by truck, very stable in drilling job

6, Full hydraulic operating system is high working efficiency.

7, The mini size water drilling machine is very suitable for courtyard, narrow space for water drilling operations.

Model number:	SM200D
Brand:	SUNMOY
Max drilling depth:	200m
Max drilling diameter:	300mm
Main engine power:	100HP
Air consumption:	17-31m³/min
Air pressure:	1.7-2.5Mpa
Drilling pipe diameter:	76mm/89mm
Drilling pipe length:	2m (3m optional)
Push force:	4T
Lifting force:	15T
Max torque of rotary:	4000-4600Nm
Rotary speed:	40-65rpm
Mud Pump flow:	60 m3/h
Drilling efficiency:	10-35 m/h
Travel speed:	2.5Km/h
Max Climb ability:	30°
Dimension(LWH):	2300×1200×1900MM
Weight:	2700kg
