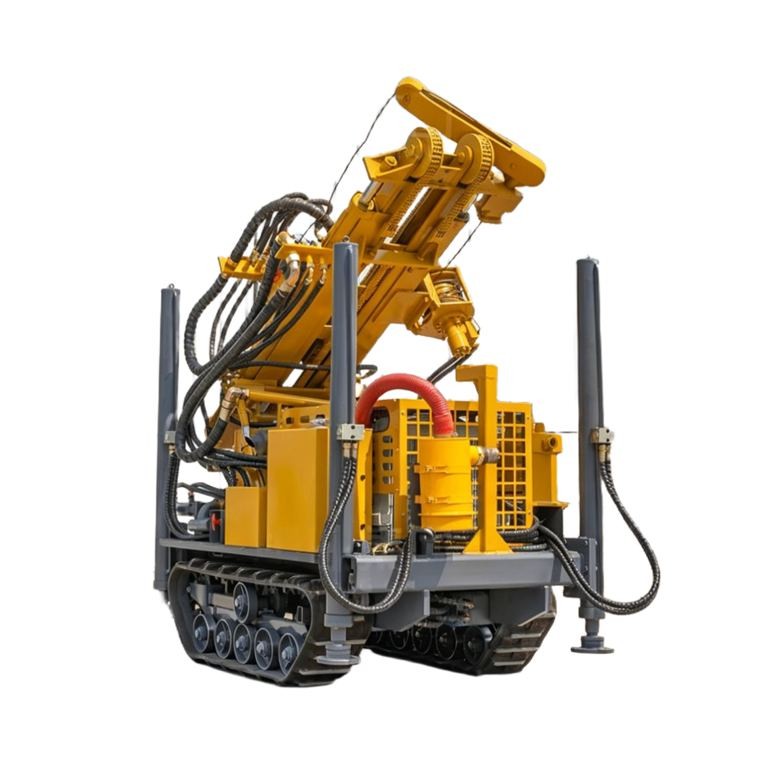

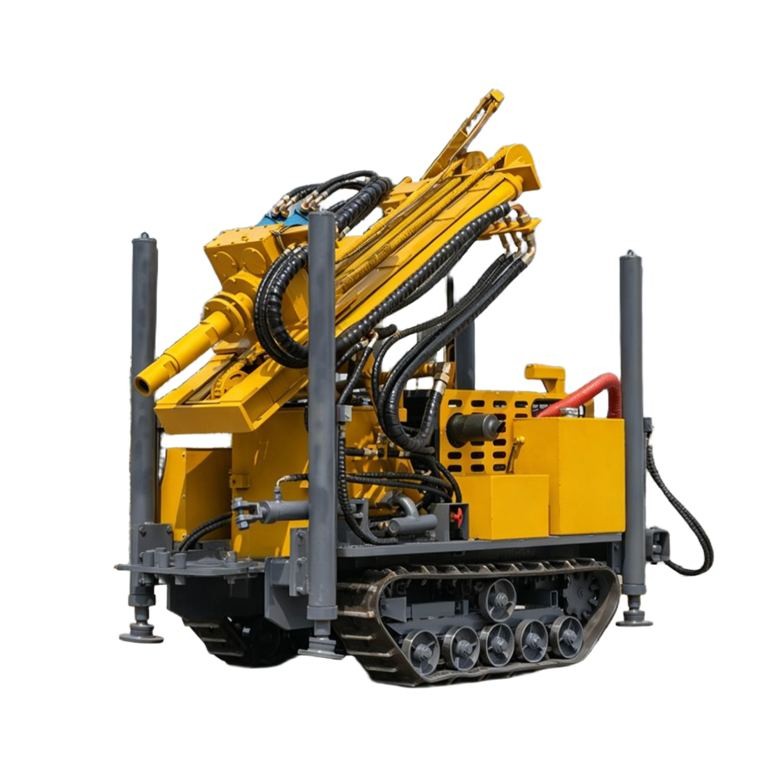

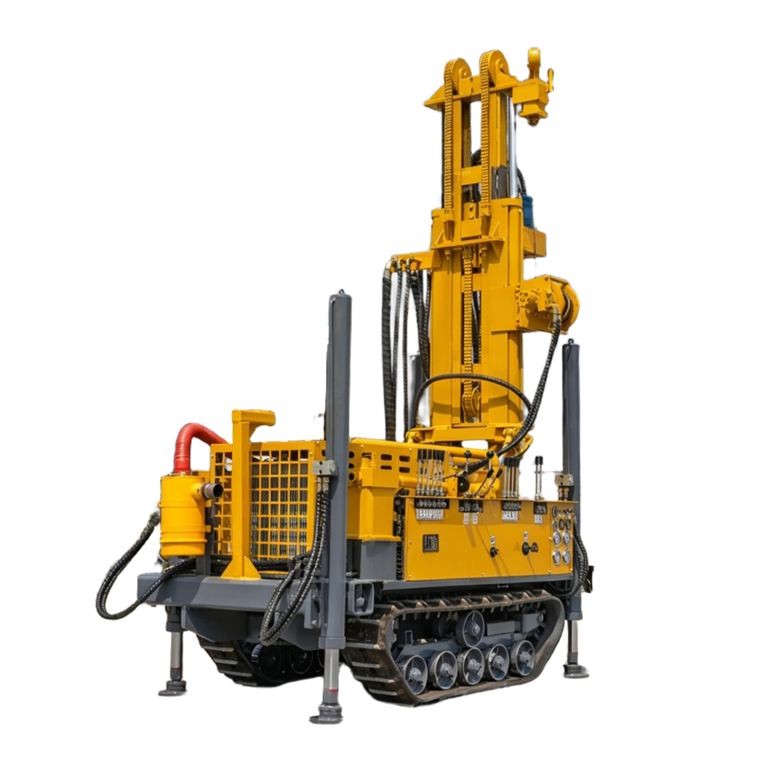

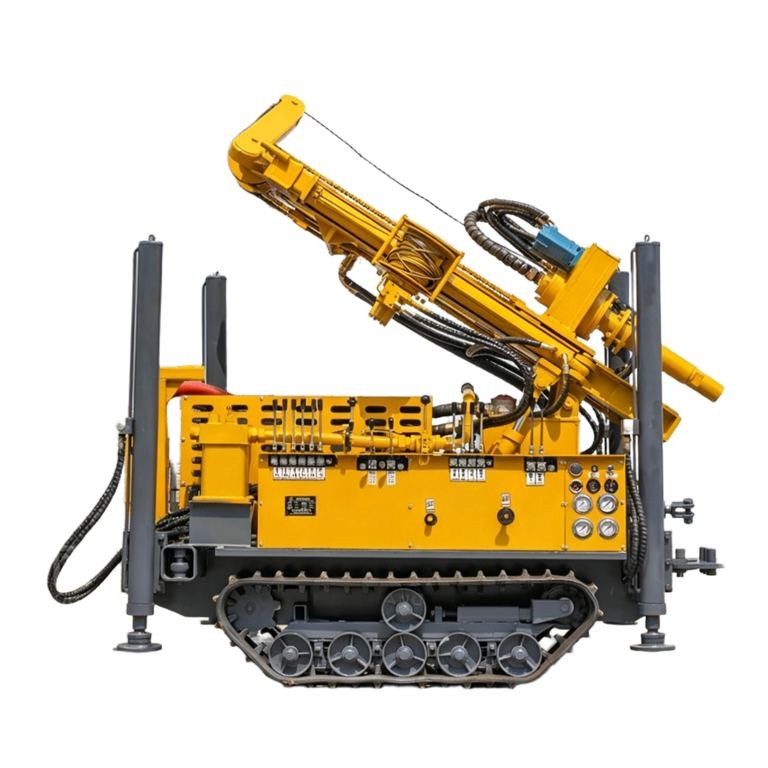

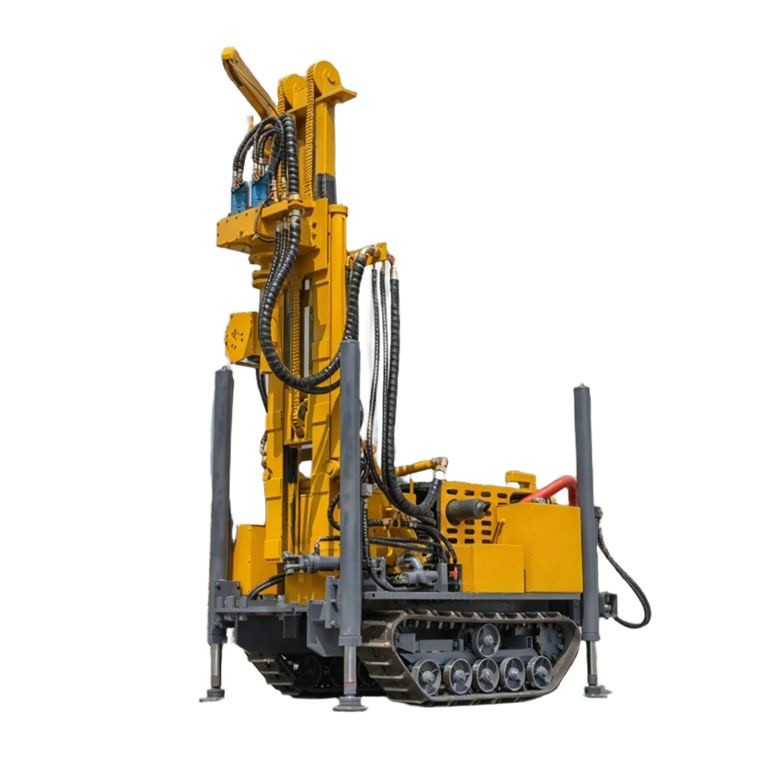

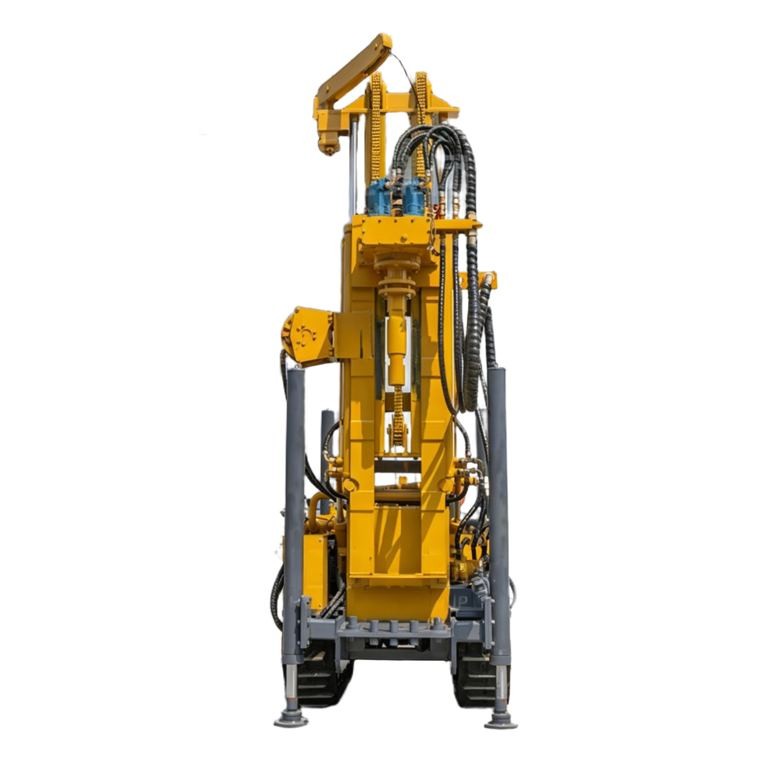

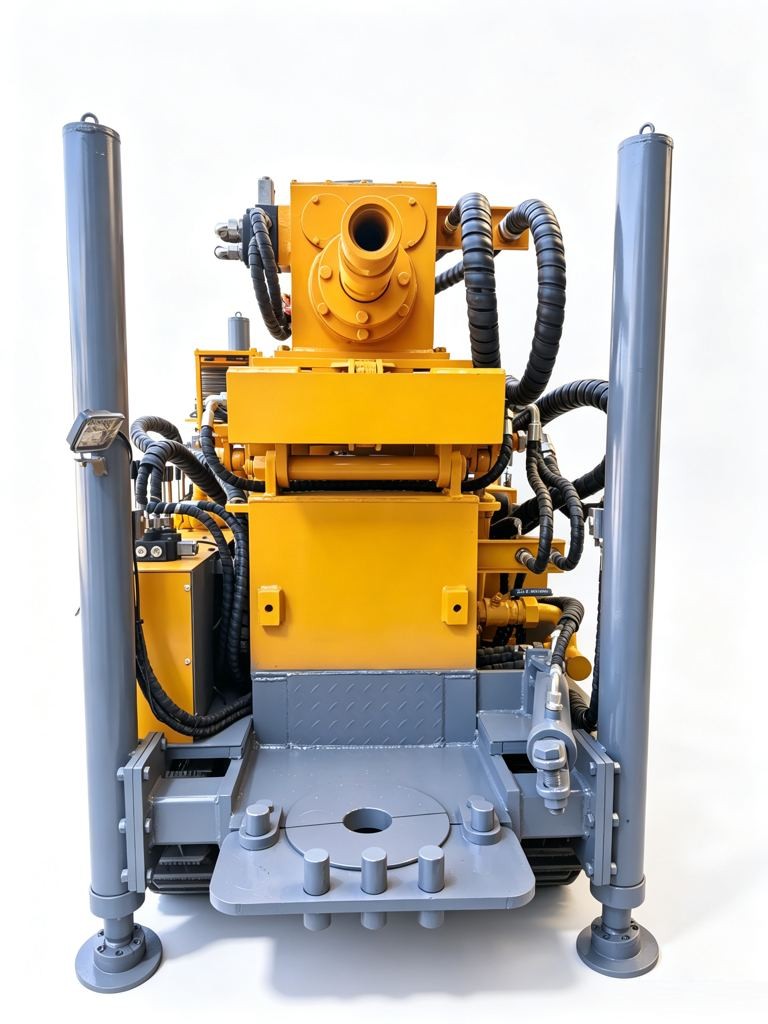

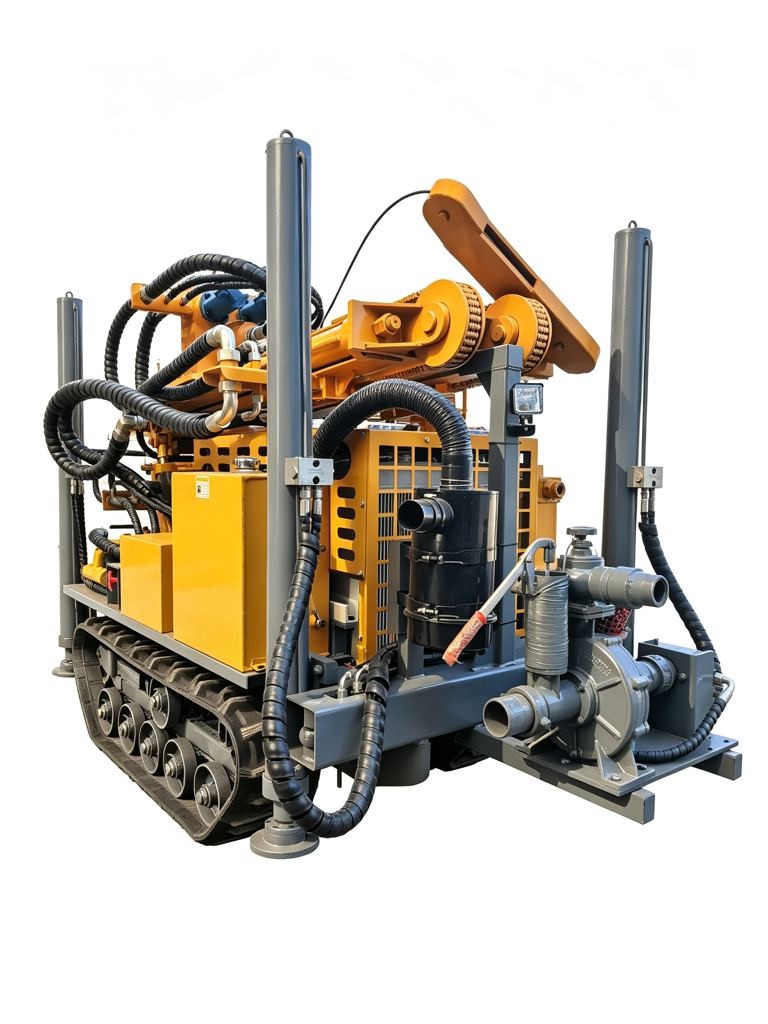

SUNMOY SM180D full‑hydraulic water well drilling rig is equipped with a 100HP (77.3 kW) diesel engine. Its maximum drilling depth reaches 180 m with borehole diameter from 90 mm to 300 mm. Fitted with full‑hydraulic outriggers for fast machine levelling. The crawler chassis adapts to complex job sites such as mountains and courtyards. It is suitable for domestic drinking water wells, farm irrigation wells and small‑scale engineering drilling projects.
The SUNMOY SM180D crawler‑mounted full‑hydraulic water well drilling rig delivers efficient and flexible drilling performance. Powered by a 77.3 kW (100HP) high‑performance diesel engine, it provides abundant power for long‑hour continuous drilling with stable operation.
This machine achieves a maximum drilling depth of 180 m and a borehole diameter range of 90‑300 mm. It meets diverse drilling requirements for household drinking‑water wells, farmland irrigation wells and small‑scale engineering boreholes.
Boasting compact layout and light‑weight body, the unit is equipped with four hydraulic outriggers to quickly level the machine on uneven ground and guarantee stable drilling performance. The crawler travelling chassis enables easy relocation with excellent off‑road capability, making it work well in narrow and complex sites including courtyards and mountainous areas.
With solid and durable configuration, user‑friendly operation and wide geological adaptability, the SUNMOY SM180D is a cost‑effective drilling solution for individual drillers and small‑size drilling teams.
High‑power Diesel Power UnitThe 77.3 kW (100HP) diesel engine supplies sufficient power for heavy‑load tasks. It is adapted to harsh field conditions and supports long‑time continuous drilling work.

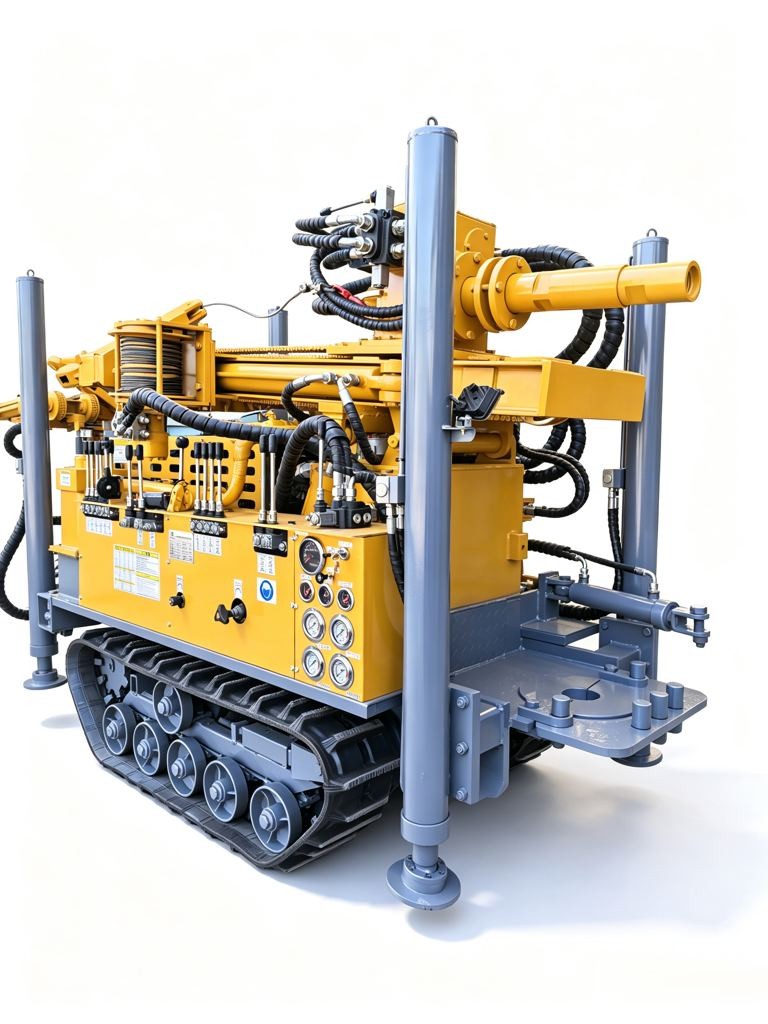

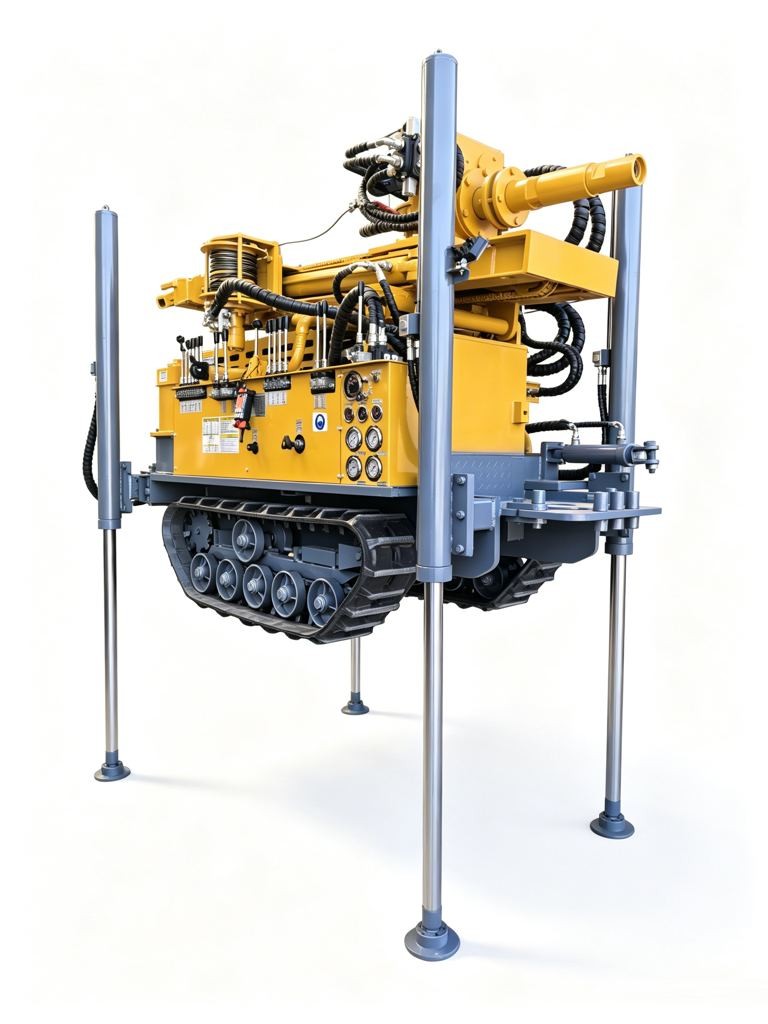

Hydraulic Outriggers for Rapid LevellingFour full‑hydraulic outriggers allow fast levelling on uneven ground. They keep the whole machine stable during drilling and improve operation safety as well as borehole accuracy.

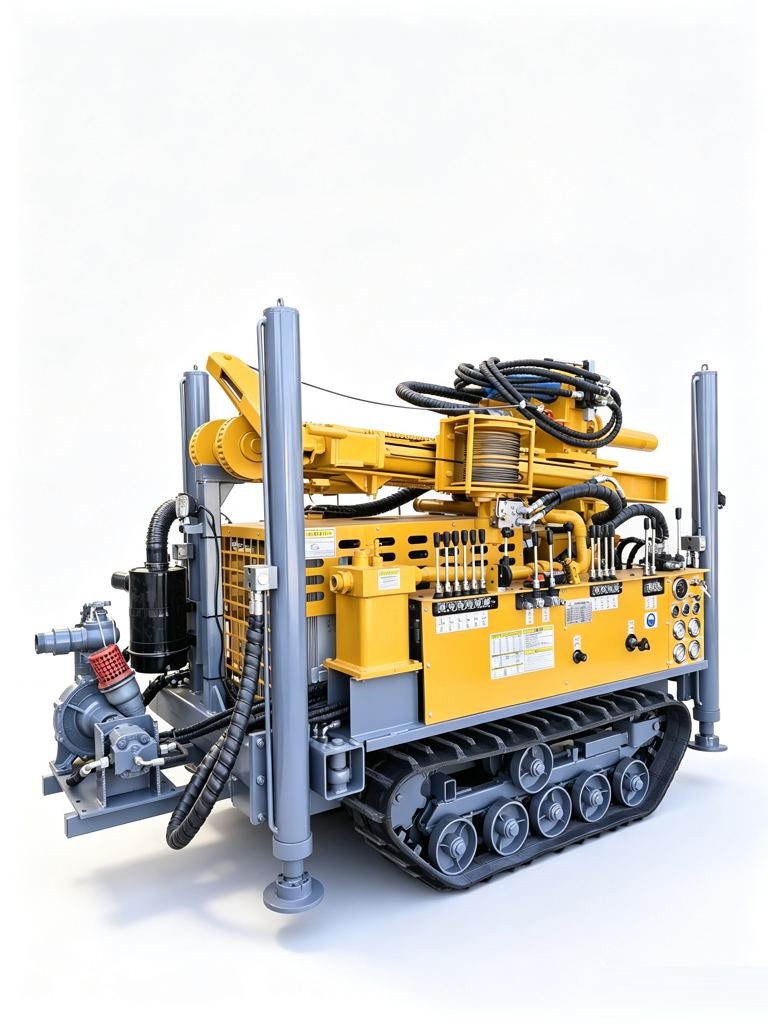

Crawler Chassis for Superior Terrain AdaptabilityAdopting crawler travelling structure with 2.5 km/h travelling speed and maximum climbing angle of 30°, the machine moves freely in courtyards, hilly mountain zones and muddy construction sites.

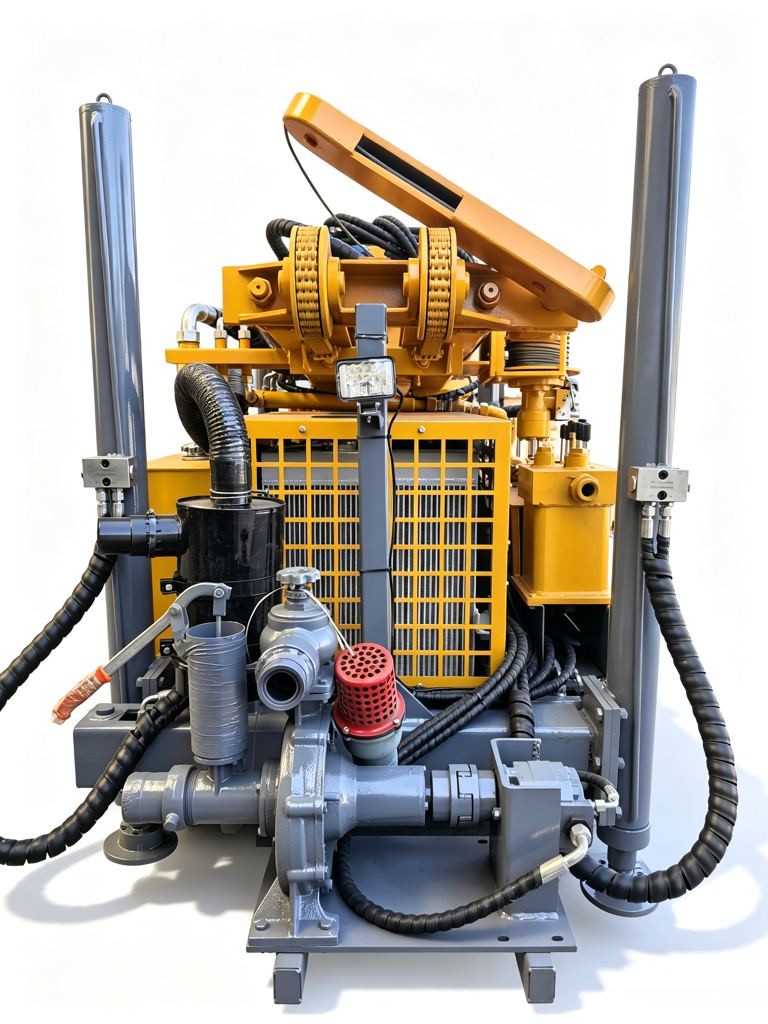

Powerful Drilling PerformanceMax rotary torque: 4000‑4600 N·m; lifting force:15 ton; push force:4 ton. It supports both mud drilling and air percussion drilling. Matching air compressor requirement: air volume 17‑31 m³/min, working pressure 1.7‑2.5 MPa.
Compact Structure for Wide ApplicationOverall dimension: 2300×1200×1900 mm; total weight only 2700 kg, convenient for transportation. Simple control system lowers operating threshold, ideal for medium‑and‑small drilling businesses.
| Item | Parameter |
|---|---|
| Model | SM180D |
| Brand | SUNMOY |
| Max. Drilling Depth | 180 m |
| Max. Drilling Diameter | 300 mm |
| Main Engine Power | 100HP (77.3 kW) |
| Required Air Consumption | 17‑31 m³/min |
| Working Air Pressure | 1.7‑2.5 MPa |
| Drill Pipe Diameter | 76 mm / 89 mm |
| Drill Pipe Length | 2 m (3 m optional) |
| Push Force | 4 T |
| Lifting Force | 15 T |
| Max Rotary Torque | 4000‑4600 N·m |
| Rotary Speed | 40‑65 rpm |
| Mud Pump Flow | 60 m³/h |
| Drilling Efficiency | 10‑35 m/h |
| Travelling Speed | 2.5 km/h |
| Max Climbing Ability | 30° |
| Overall Dimension(L×W×H) | 2300×1200×1900 mm |
| Total Weight | 2700 kg |
‑ Rural domestic drinking‑water wells ‑ Farmland & orchard irrigation wells ‑ Small‑scale engineering borehole projects ‑ Household courtyard well drilling ‑ Water well projects in mountainous and hilly regions
